MCP SC PC to SC UPC duplex 62.5/125 fiber optic mode conditioning patch cord 3meter

Name: MCP SC PC to SC UPC duplex 625125 fiber optic mode conditioning patch cord 3meter
Brand: New Light
Price: 1 USD

Quality MCP SC PC to SC UPC duplex 62.5/125 fiber optic mode conditioning patch cord 3meter for sale

Brand Name : New Light

Model Number : SC -SC ( LC ,ST ,FC ,etc )

Certification : CE / ISO / RoHS

Place of Origin : Shenzhen,China

MOQ : 20 pcs

Price : can be negotiated

Payment Terms : T/T, Western Union, MoneyGram, Paypal

Supply Ability : 2000 pcs /day

Delivery Time : 5-10 working days after received payment

Packaging Details : opp bag + carton box

connector : SC-SC (SC-LC , LC-LC ,ST-LC ,ST-SC )any connector

polish : PC / UPC

fiber count : duplex

insertion loss : ≤ 0.3dB

Fiber type : Simplex and Duplex, G652D, G655, anything, SM or MM

Insertion loss : ≤0.3dB, < 0.2dB, <=3.0 dB

Material : PVC, LSZH

Contact Now

fiber optic patch cord name

MCP SC PC to SC UPC duplex 62.5/125 fiber optic mode conditioning patch cord 3meter

How the Mode Conditioning Cable Works

The need for this conditioning fiber optic patch cord is due to the single-mode launch nature of the-LX or long-wave(1300nm) transceiver modules used for Gigabit Ethernet.

Launching a single-mode laser into the center of a multimode fiber can cause multiple signals to be generated that confuse the receiver at the other end of the fiber.

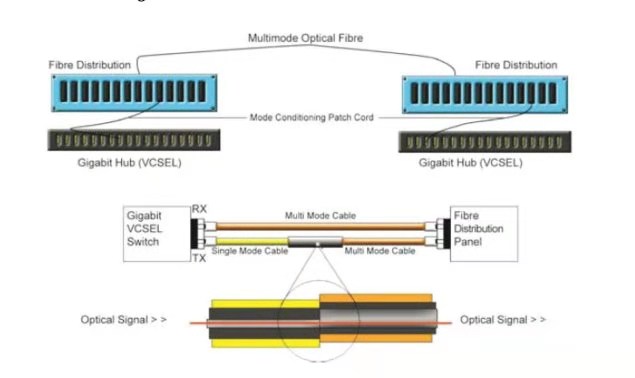

In that case, a mode conditioning patch cord eliminates these multiple signals by allowing the single-mode launch to be offset away from the center of a multimode fiber. This offset point creates a launch that is similar to typical multimode LED launches. (see diagram below)

MCP SC PC to SC UPC duplex 62.5/125 fiber optic mode conditioning patch cord 3meter

fiber optic patch cord Technical Parameter

Parameter	Specification
Insertion Loss	Light Source Transmission Direction	Testing Wavelength	Insertion Loss
	D→B	850nm, 1,300nm	Max .≤ 0.30dB
	B→D	850nm, 1,300nm	Max .≤ 0.30dB
	C→A	850nm, 1,300nm	≤ 15.0dB(50/125um); ≤ 18.0dB(62.5/125um)
	A→C	850nm, 1,300nm	Max .≤ 0.30dB
	C→A	1,310nm, 1,550nm	≤ 2.10dB(50/125um); ≤ 2.60dB(62.5/125um)
Return Loss	SM APC≥60.0dB; SM UPC≥50.0dB	MM PC≥35.0dB
Durability	1,000 mating, typical≤0.20dB
Operating Temp	-20℃ to +70℃
Storage Temp	-40℃ to +85℃

MCP SC PC to SC UPC duplex 62.5/125 fiber optic mode conditioning patch cord 3meter
